Manufacturing Rang

Design Standard

API 674 & H.I.S

Max Flow Capacity

92 M3/HR

Discharge Pressure

700 KG/CM2

Power

UPTO 400 H.P

Products

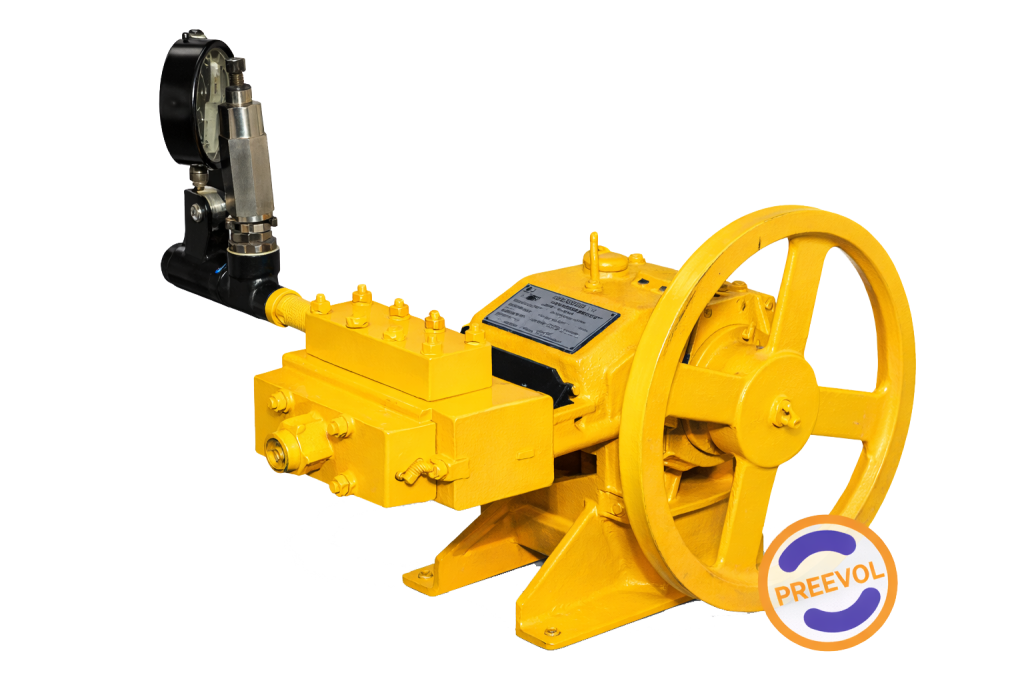

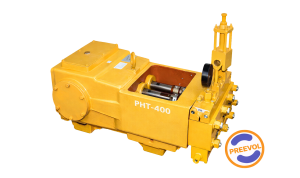

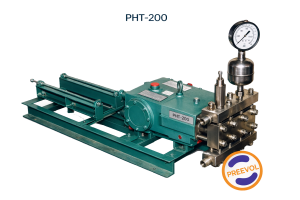

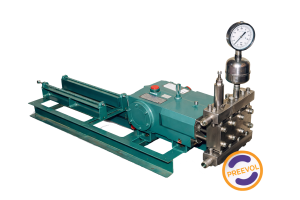

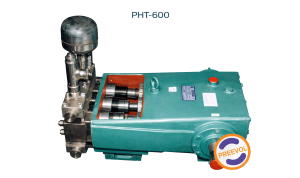

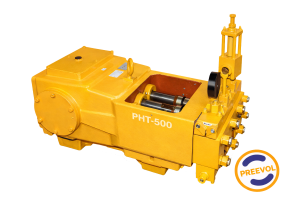

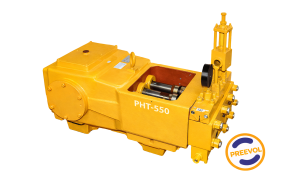

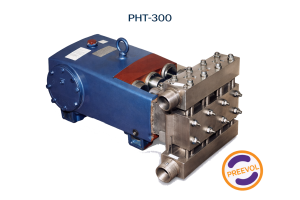

Triplex Pump :-

PLUNGER DIAMETER	PRESSURE KG./CM2	FLOW RATE IN LPM AT STANDARD STROKE FREQUENCY
PLUNGER DIAMETER	PRESSURE KG./CM2	100	200	300	400	500	600	700	800
10	350	0.47	0.93	1.40	1.87	2.33	2.80	3.27	3.73
15	155	1.05	2.10	3.17	4.20	5.25	6.30	7.35	8.40
20	88	1.90	3.77	6.65	7.53	9.37	11.30	13.19	15.13
25	55	2.94	5.87	8.80	11.73	14.67	17.60	20.53	23.47
30	30	4.23	8.47	12.70	16.93	21.33	25.40	29.63	33.87

PLUNGER DIAMETER	PRESSURE KG./CM2	FLOW RATE IN LPM AT STANDARD STROKE FREQUENCY
PLUNGER DIAMETER	PRESSURE KG./CM2	100	200	300	400	500	600	700	800
10	402	0.17	1.05	1.58	2.12	2.65	3.77	3.70	4.23
15	173	1.18	2.37	3.57	4.77	5.95	7.15	8.33	9.52
20	98	2.12	4.23	6.35	8.47	10.60	12.70	14.80	16.90
25	62	3.13	6.60	9.90	13.20	16.50	19.80	23.10	26.40
30	43	4.77	9.53	14.23	19.10	23.80	28.60	33.13	38.10

PLUNGER DIAMETER	PRESSURE KG./CM2	200 Rpm	300 Rpm	400 Rpm	500 Rpm	600 Rpm
PLUNGER DIAMETER	PRESSURE KG./CM2	Litres/m	Litres/m	Litres/m	Litres/m	Litres/m
10	804	1.6	2.5	3.3	4.2	5.0
15	257	3.6	5.7	7.6	9.5	11.4
20	196	6.7	10.2	13.5	16.9	20.3
25	124	10.6	15.9	21.1	26.5	31.8
30	86	15.2	22.8	30.5	38.1	45.7
35	63	20.7	31.1	41.5	51.9	62.3

PLUNGER DIAMETER	PRESSURE KG./CM2	200 Rpm	300 Rpm	400 Rpm	500 Rpm	600 Rpm
PLUNGER DIAMETER	PRESSURE KG./CM2	Litres/m	Litres/m	Litres/m	Litres/m	Litres/m
20	344	7	11	15	19	22
25	218	11	17	23	29	35
30	150	17	25	34	42	51
35	111	23	35	46	58	70
40	84	30	45	61	76	91
45	66	38	52	77	96	115
50	54	47	71	95	119	143

Plunger Diameter	Pressure KG./CM2	200RPM	300RPM	400RPM	500RPM
Plunger Diameter	Pressure KG./CM2	Litres/m	Litres/m	Litres/m	Litres/m
25	436	14	22	29	36
30	301	21	31	42	52
40	169	37	55	74	92
50	109	58	87	116	145
55	89	70	105	141	176
60	75	83	125	167	209
65	64	98	147	197	246

Plunger Diameter	Pressure KG./CM2	200RPM	300RPM	400RPM
Plunger Diameter	Pressure KG./CM2	Litres/m	Litres/m	Litres/m
30	473	28	42	57
40	267	50	76	101
50	171	79	119	158
55	141	96	144	192
60	118	114	171	228
70	86	155	233	311
75	75	178	268	357

Plunger Diameter	Pressure KG./CM2	200RPM	300RPM	400RPM
Plunger Diameter	Pressure KG./CM2	Litres/m	Litres/m	Litres/m
22	758	17	25	35
30	601	32	48	64
40	337	57	85	115
50	216	88	132	176
70	110	175	262	350
75	96	201	300	402
85	75	258	387	517

Plunger Diameter	Pressure KG./CM2	200RPM	300RPM	400RPM
Plunger Diameter	Pressure KG./CM2	Litres/m	Litres/m	Litres/m
50	311	106	159	212
60	214	152	228	304
65	183	180	270	360
70	158	207	310	414
75	137	238	357	476
80	121	270	405	540
90	95	343	515	686

Plunger Diameter	Pressure KG./CM2	200RPM	300RPM	400RPM
Plunger Diameter	Pressure KG./CM2	Litres/m	Litres/m	Litres/m
50	623	132	198	264
60	429	190	286	381
65	367	223	335	447
70	316	259	389	519
75	274	298	447	596
80	242	339	508	678
85	214	382	574	765
90	190	429	643	858
100	154	529	794	1059

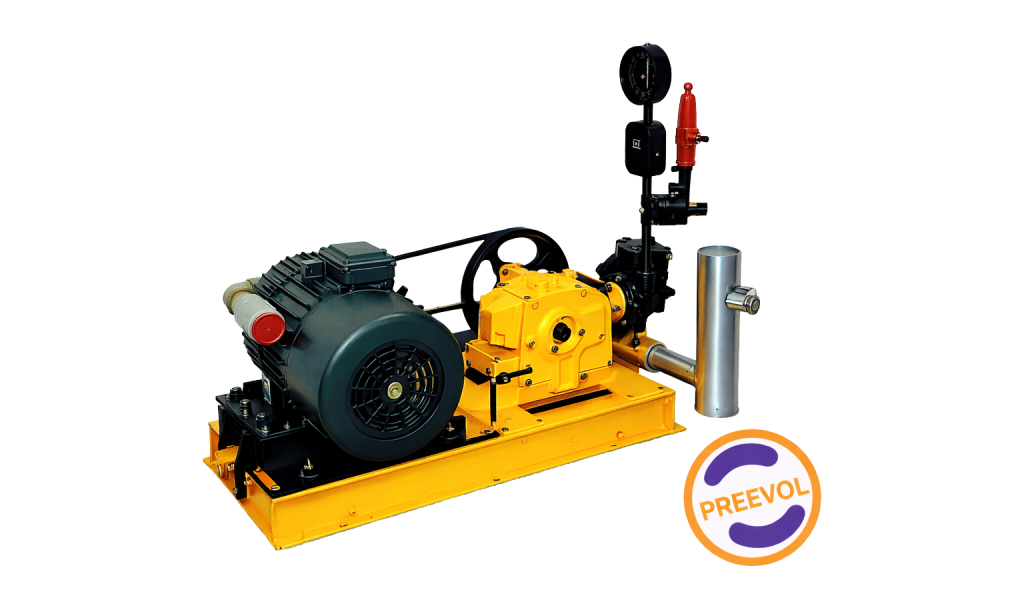

Simplex Plunger Pumps :-

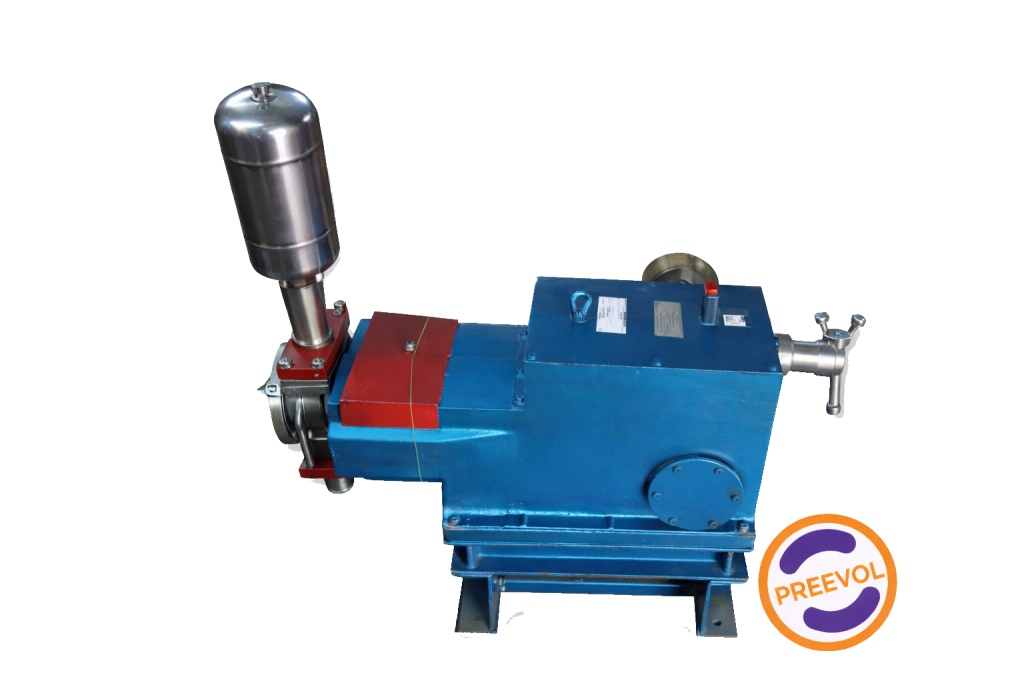

Metering Pumps :-

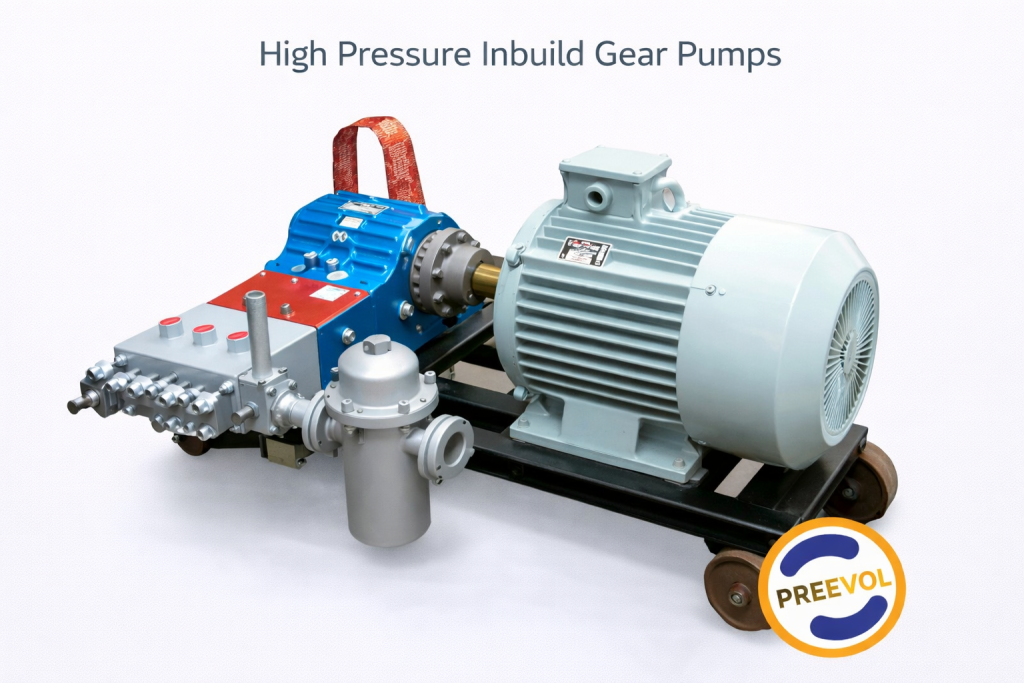

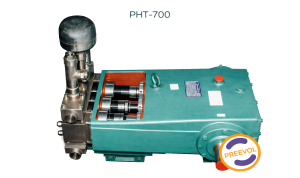

High Pressure Inbuild Gear Pumps :-

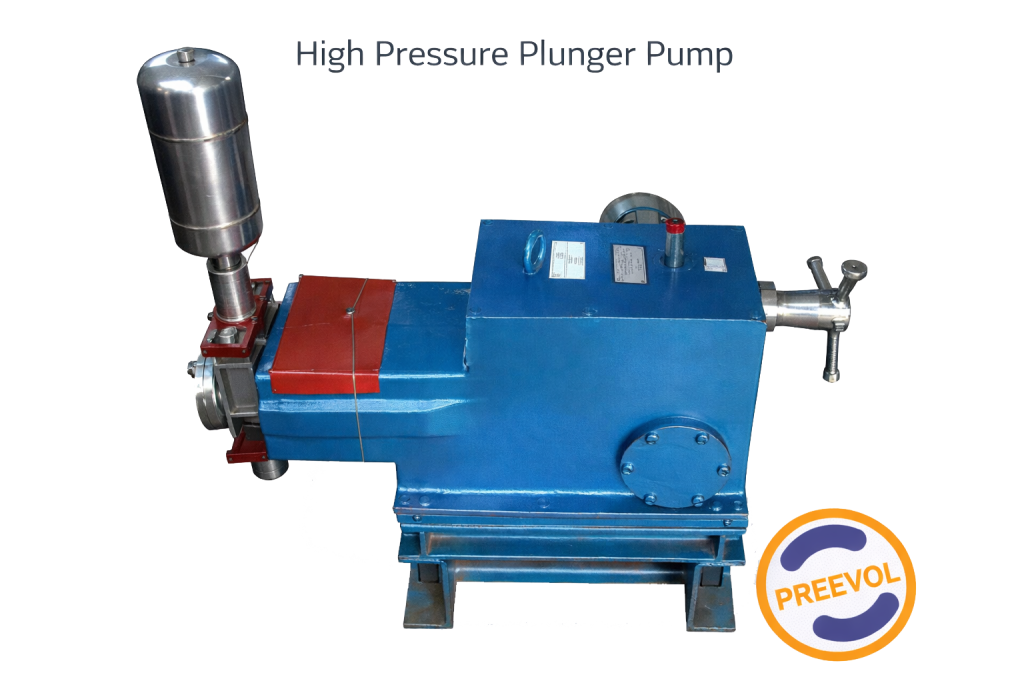

High Pressure Plunger Pumps :-
